- Made in the USA.

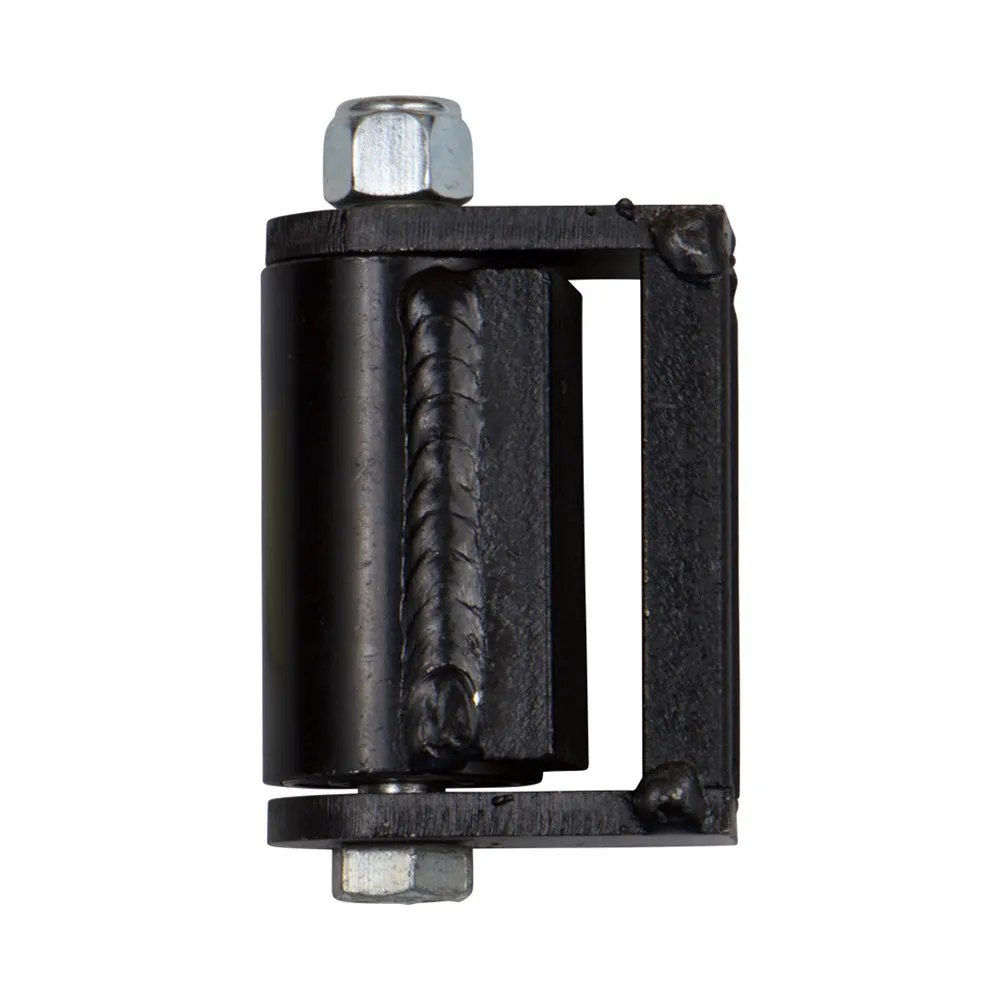

- Pivot type weld-on hinge with sealed roller bearings.
- 220 Degree swing range.
- Features a nylon locking nut on the bottom of the pivot bolt.
- Sold by the pair. A pair (two hinges) is what is normally needed to hang one gate.
1400 lb Model Dimensions:
- Post side welding plate is 1.5" x 3.5".
- Gate side welding plate is 1.5" x 2.75".
- Spacing between the gate and post is 2.71".
- Pivot bolt is 0.5" x 4".
1700 lb Model Dimensions:
- Post side welding plate is 2" x 4.25".
- Gate side welding plate is 2" x 3.25".
- Spacing between the gate and post is 4.25".
- Pivot bolt is 0.672" x 5".
