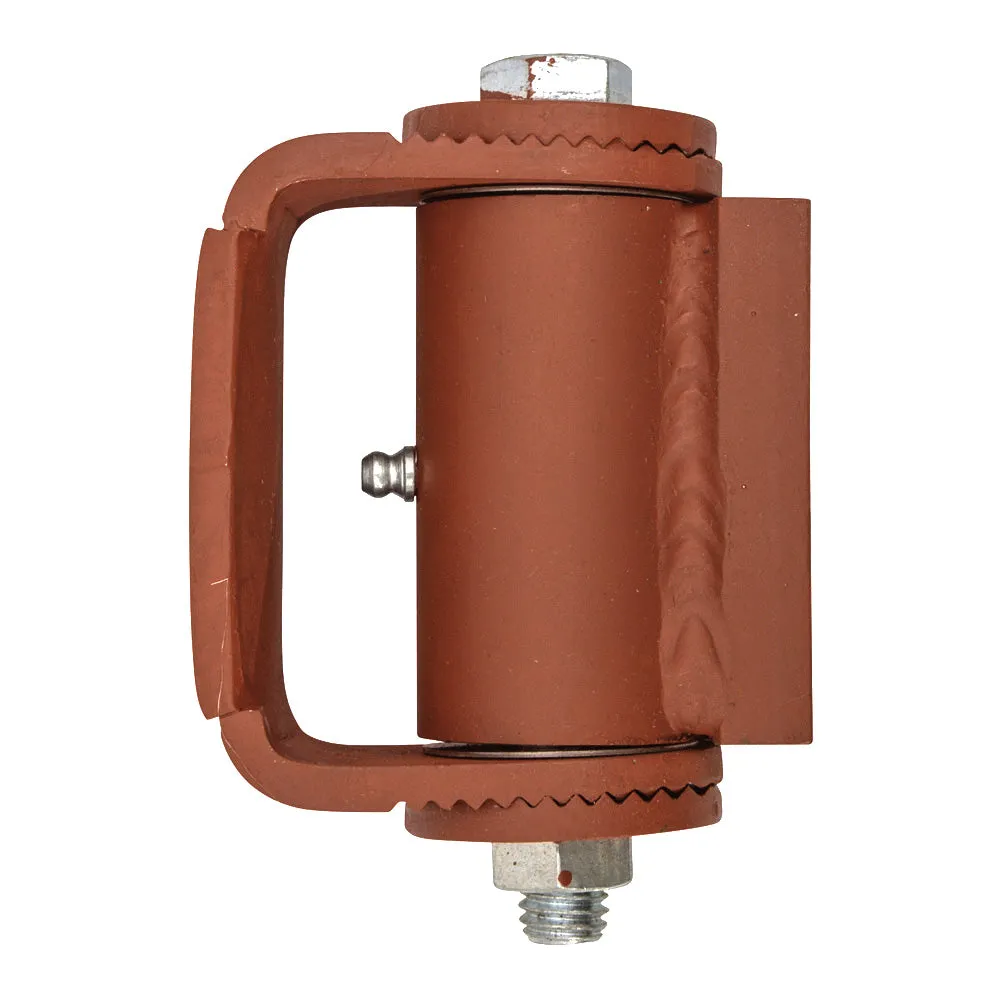

• This hinge is designed to weld onto round pipe-like surfaces.
• Installs between the gate post and the gate frame.
• Features sealed bearing and zerk fitting for easy lubrication.
• This hinge is sold by the pair. You would normally order one pair per gate.

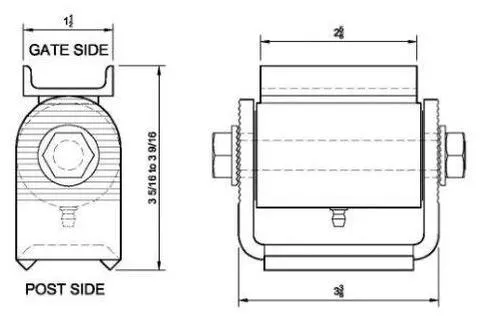

1000 lb Model:

• Measures 3-7/8" high and 3-5/16" to 3-9/16" wide (adjustable).
• This weld-on hinge features an adjustable yoke making the hinge slightly adjustable after installation.

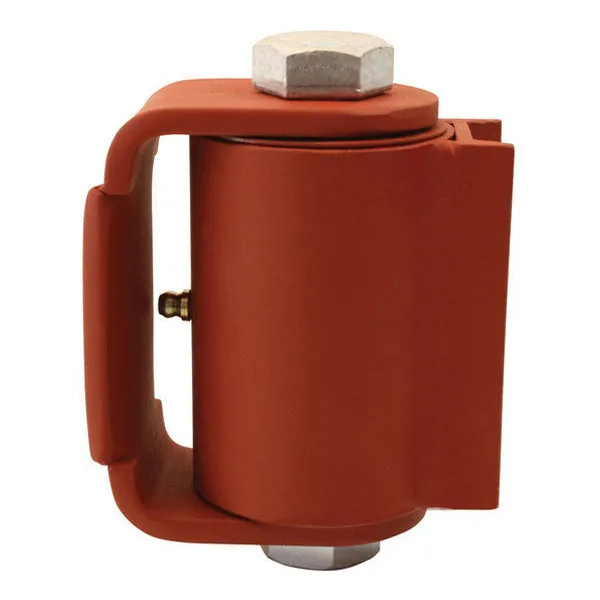

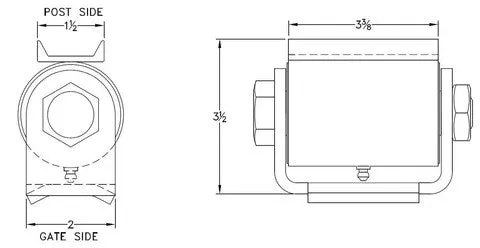

3000 lb Model:

• Measures 4" high and 3-1/2" wide (non-adjustable).
