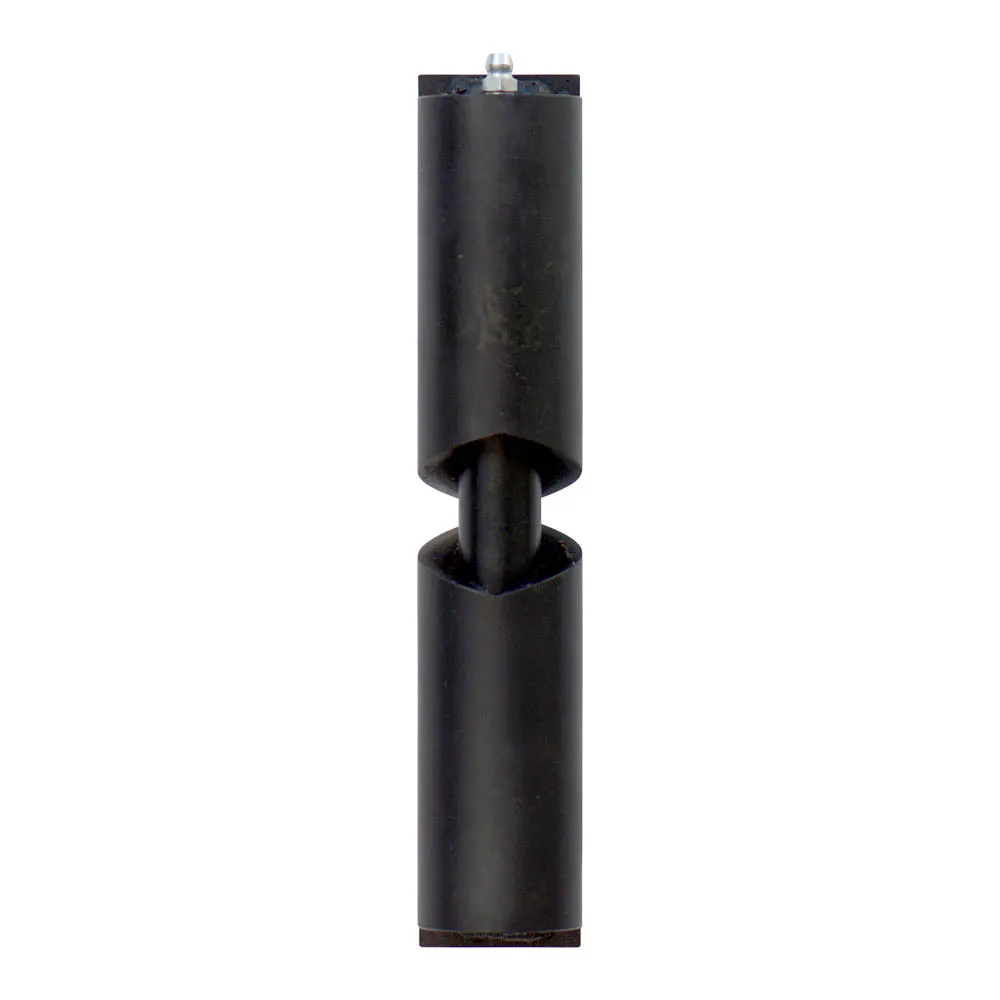

• Very high quality heavy duty weld-on hinge that self closes.
• Made in America.
• Rated at 800 lbs per pair.
• Self-closing feature uses a machined surface and gravity to self-close.
• Hinge attaches between the gate and post.
• Includes a grease fitting to keep the hinge lubricated.
• A normal installation requires 2 hinges.
• A typical installation of this hinge would allow the door to open to 90 degrees. The hinge will allow the door to open wider but how wide your door will actually open depends on your installation (at what point the surface of the door comes in contact with the edge of your post).
• Floating hinge pin. It is not permanently attached to either the top or bottom part of the hinge and the gate or door may be lifted off after installation.
• This self closing weld-on hinge is not finished and should be coated after installation.
• Made from mild steel.
• Not handed.
• Welding plates are 3-3/8" x 1-1/2" x 3/8".
• Gap between gate and post is 2-1/4"
• For best self closing action, your door or gate should be approximately 50% of this hinges weight rating.
• IMPORTANT: Please see Downloads for complete installation instructions.
