BCS Power Safe 749 Tractor Electric Start
The BCS Power Safe 749 Tractor Electric Start has one of the best engines in the business! The GX390 has more power, quieter performance, lower fuel consumption, lower emissions and upgraded features. Honda’s GX series has exceptional performance!
BCS Power Safe 749 Tractor Electric Start Features Include:
- Digital CDI ignition system with variable timing
- Increased compression ratio
- Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
- OHV design for increased efficiency and optimal power transfer
- Precision engineered components result in lower vibration
- Ball bearing supported crankshaft for greater stability
- Heavy duty balancer shaft
- Improved piston design
- Large capacity, multi-chamber exhaust system
- Improved camshaft and muffler reduce overall engine noise by up to 5 dB
- Forged steel crankshaft and rigid crankcase
- Helical cut gears
- Sophisticated air intake system
- Oil Alert
- Cast iron cylinder sleeve
- High quality materials, fit, and finish
- Dual element air cleaner
- Fuel Valve
- 3-Year Limited Warranty
- Simple throttle control
- Large fuel tanks
- Large automotive type fuel cap
- Dual oil drains and fill
- Easy, convenient, heavy duty control box
- Easily accessible spark plug
- Heavy duty recoil starter
- Automatic mechanical de-compression system
- Variable ignition timing
- CARB and EPA certified
- No catalyst necessary
- Low profile versions
- Gear reduction options
- recoil start
- Spark arrester available
- Charge and lamp coils with multiple output options available
- Cyclone Air Cleaner available
BCS Power Safe 749 Tractor Electric Start Specifications:
- Engine Type - Air-cooled 4-stroke OHV
- Bore x Stroke - 88 X 64 mm
- Displacement - 389 cm3
- Net Power Output* - 11.7 HP (8.7 kW) @ 3,600 rpm
- Net Torque - 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
- PTO Shaft Rotation - Counterclockwise (from PTO shaft side)
- Compression Ratio - 8.2:1
- Lamp/Charge coil options - 25W, 50W / 1A, 3A, 10A, 18A
- Carburetor - Butterfly Float Type
- Ignition System - Digital CDI with variable timing
- Starting System - Recoil
- Lubrication System - Splash
- Governor System - Centrifugal Mass Type
- Air cleaner - Dual element
- Oil Capacity - 1.16 US qt (1.1 L)
- Fuel Tank Capacity - 6.4 U.S. qts (6.1 liters)
- Fuel - Unleaded 86 octane or higher
- Dry Weight - 69 lb (31.5 kg)
BCS Power Safe 749 Tractor Electric Start Dimensions:
- Length (min) - 16.0" (407 mm)
- Width (min) - 19.1" (485 mm)
- Height (min) - 17.7" (449 mm)
BCS Power Safe 749 Tractor Electric Start PTO Shaft Options:
- E type - Tapered shaft
- H type - Reduction type PTO
- L type - Reduction type PTO
- P type - Threaded type (SAE)
- Q type - Straight shaft
- R type - Reduction type PTO
- V type - Tapered shaft
The BCS Power Safe 749 Tractor Electric Start is available at Kooy Brothers Equipment Ltd. located at 1919 Wilson Avenue in Toronto, Ontario.
Contact Us for more information.

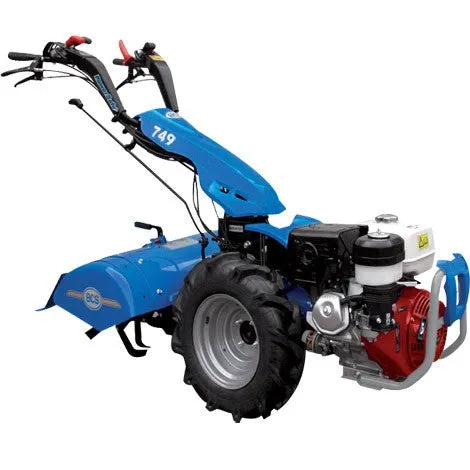

* Price is subject to change without notice. Errors and omissions exempted.Product shown does not come with rear tiller box as displayed.
